Bit-tech website was established in 2000, has now developed into one of the most famous case of MOD enthusiasts exchange community, of course, so the number of MOD case database from around the world to increase the number of cases more than 100, the Bit-tech site is no doubt to make MODer player's paradise. (okay, I admit that this line I said countless times) thanks to foreigners and have money and time and ideas, there is no lack of Bit-tech outstanding works, today I give everybody to bring is a pure Aleck made works "acrylic itx", here we take a look at it together.

Remember the and upwards Onwards? , right this piece of work also from Systems Parvum's hand, but the size of ITX Acrylic. The tour map image sequence and the original image sequence consistent, but omitting the middle part details (even if such pictures is still more than 40). A good piece of work can not be less than the planning, in the design of the ITX Acrylic".

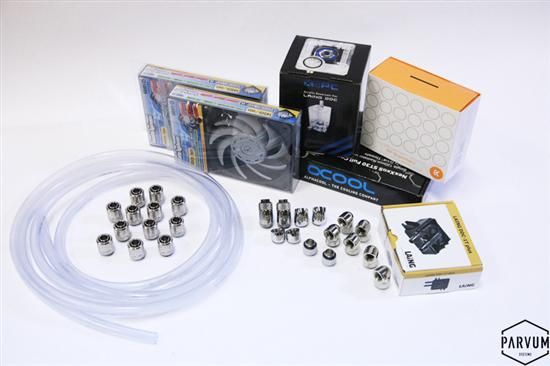

ITX Acrylic all water cooling accessories.

Before the start of the joint show seems to be a good tradition of each MODer, this is no exception.

"Joint show" seems to be a kind of magic to attract us, here and then stick a piece of.

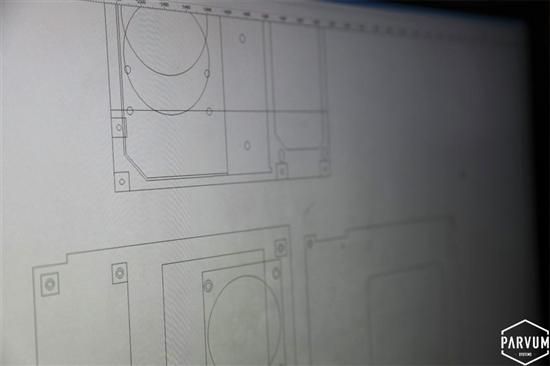

From drawings to finished products

Front panel

Connect with the previous and upwards Onwards

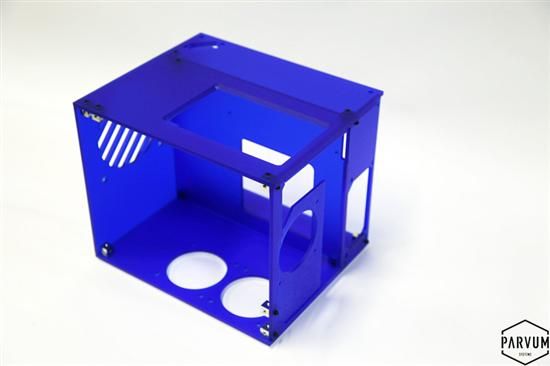

First try to install, you can see the whole chassis structure

Initial intermediate separator. It can be seen that the overall layout of the original program as well as before the and upwards Onwards is exactly the same, 120mm cold front row, 160mm cold row installed at the bottom, and later due to the conflict between the water and the program, the program is helpless to give up.

First test equipment

ASRock Z87E-ITX motherboard

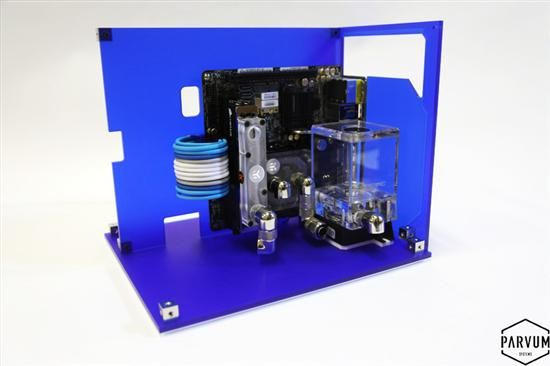

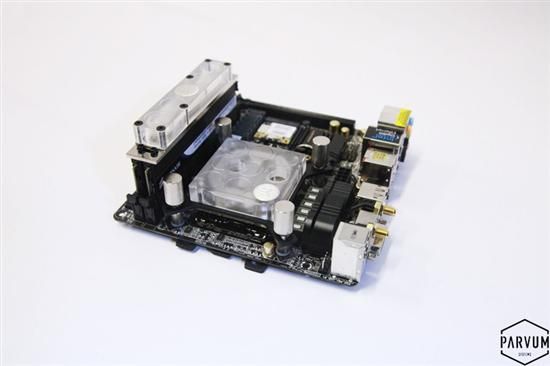

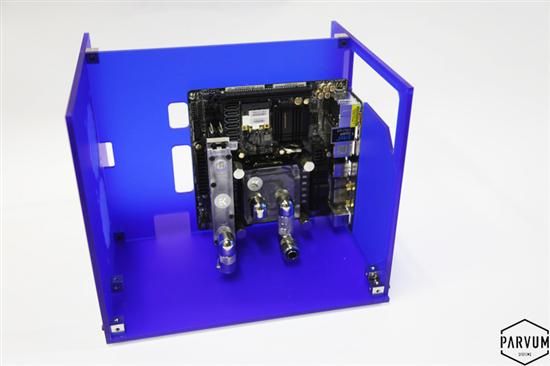

Motherboard test equipment

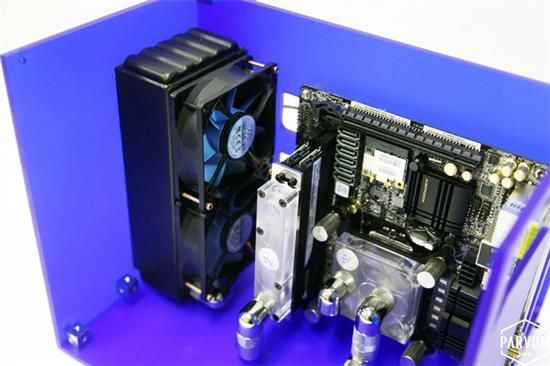

Mini 160mm cold front panel, the whole system using the combination of 120, 160mm, CPU and memory alone to heat this combination should be enough.

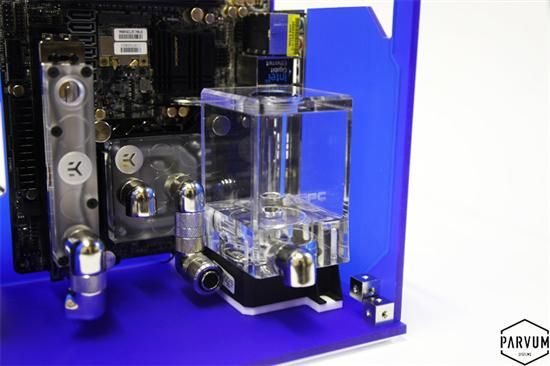

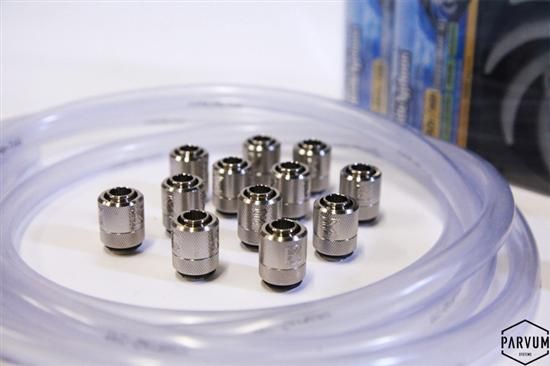

As a result of the ITX Mini platform, so the work of all water cooling parts are used almost all over the small parts, such as the water tank.

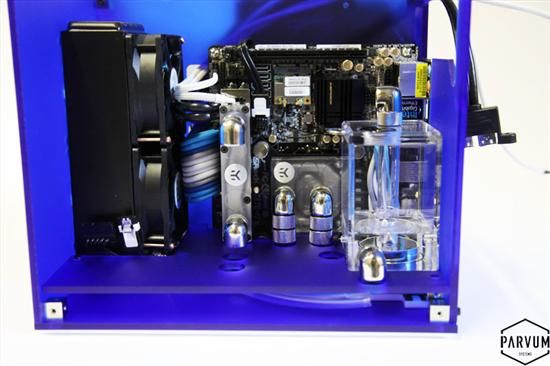

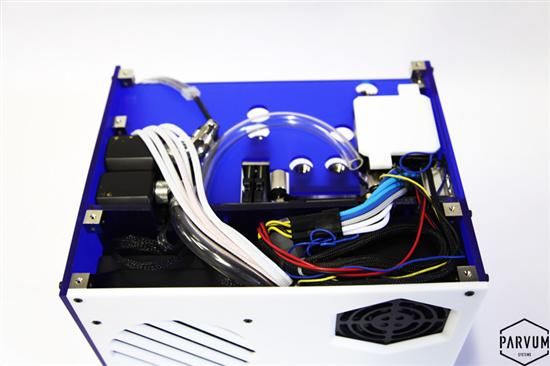

Row back compartment in the 120 cold, this money work structure is divided into two parts, power and 120mm cold row is arranged on the left side of the chassis, in order to ensure the cleanliness of the right space, extra wires and pipes are hidden on the left side and bottom.

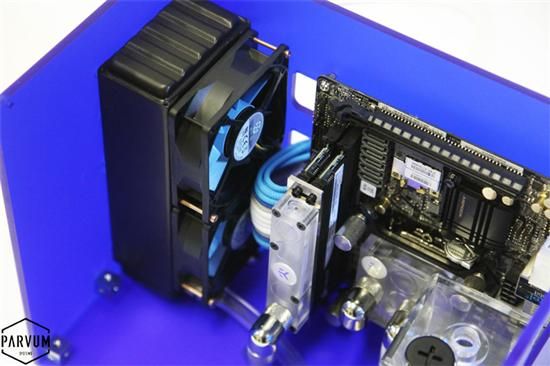

120 cooling features, 120mm cooling installation is a bit far fetched here, where the wind row? The initial solution is obviously better than the current plan.

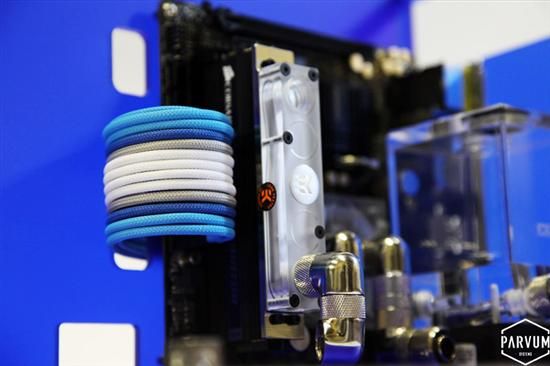

The power supply cord is blue and white.

Different angle feature

Different angle feature

If you use silicone wire, air duct will be better

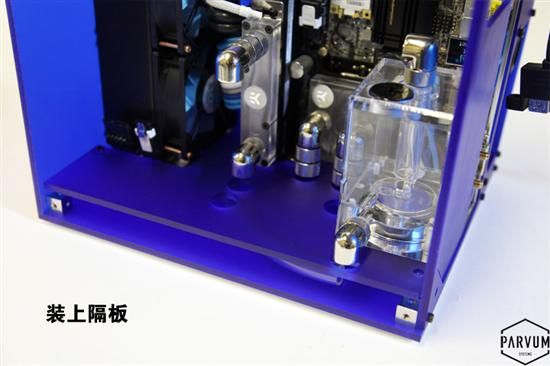

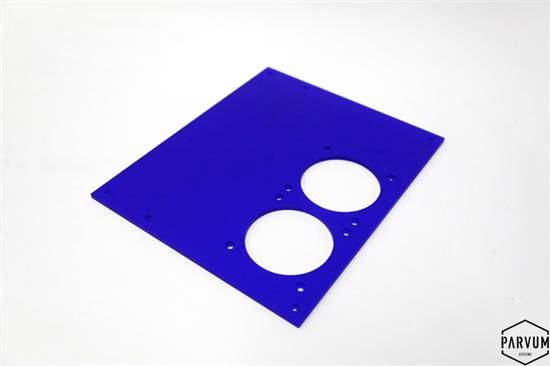

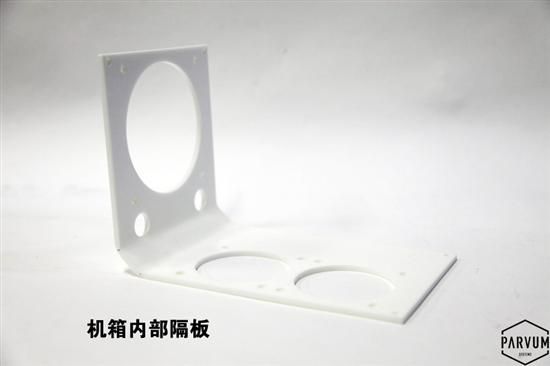

Redesigned separator

With the effect of the separator, the lower part of the water separator.

Different angle feature

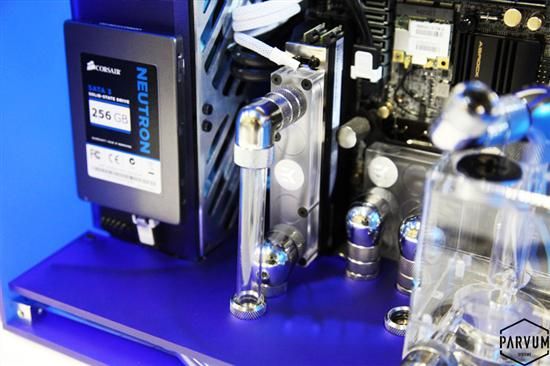

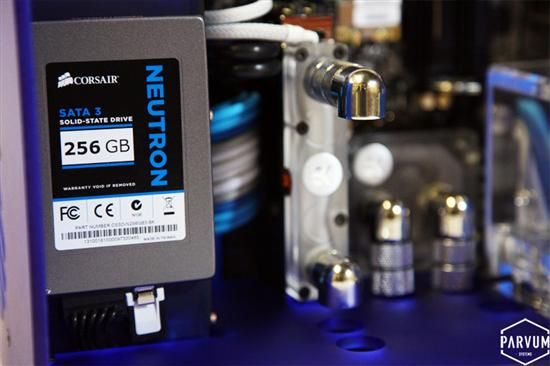

160mm cold row, the side of the SSD, SSD installation method is fully draw the previous L3P works.

Different angle feature

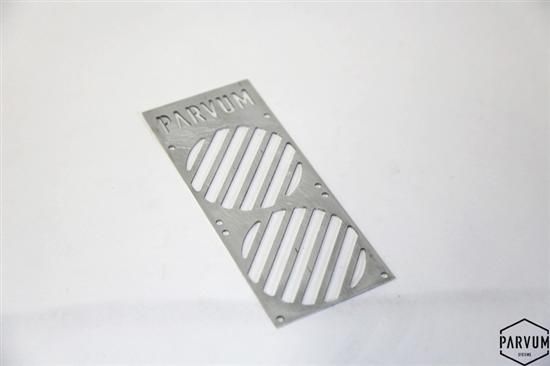

Front fan protection grid, the top of a very personalized LOGO

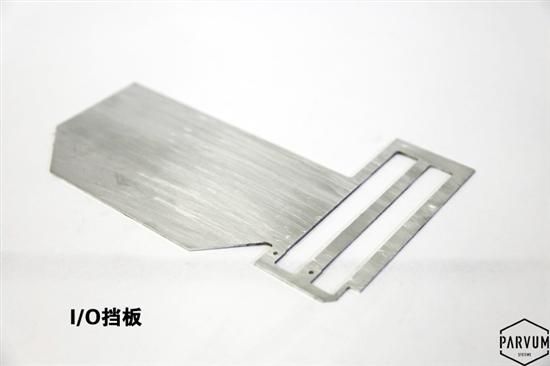

Aluminum I/O baffle

I/O baffle

LOGO Close-up

LOGO Lighting effect

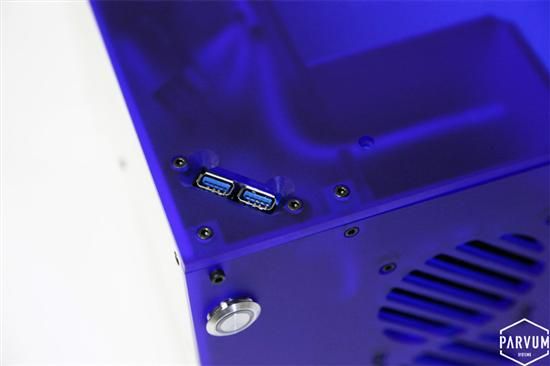

Exquisite USB 3 interface

It's almost done here.

Basically completed the work, and the rest is the water landscaping work.

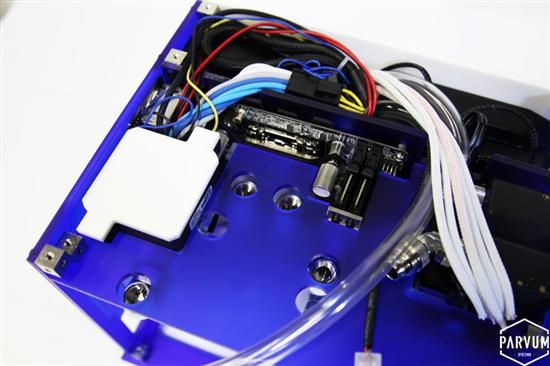

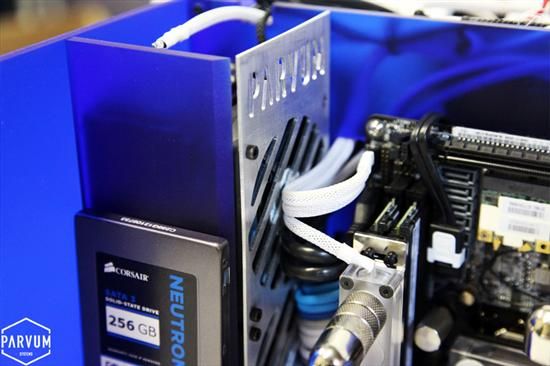

In order to maintain the cleanliness of the main board area, the author of the part of the wire and the water hidden in the middle of the baffle.

You can see this piece of compact space.

Bottom water

Internal feature

Internal feature

Finally, the work of the graphics card chose ASUS GTX 670 MINI, the reason why the graphics card no water, according to the original author, this card is very strong heat, do not need to use water. In fact, this case can not accommodate large size of the cold.

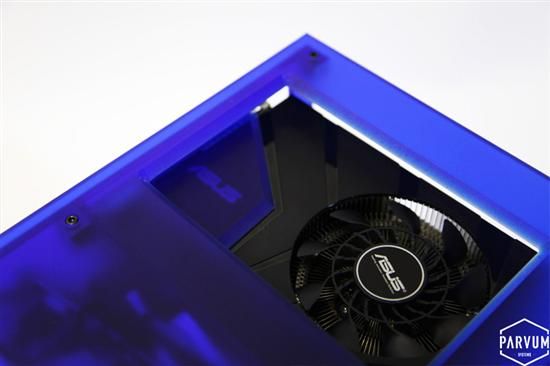

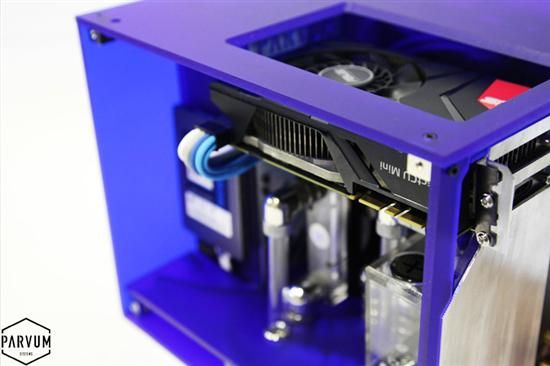

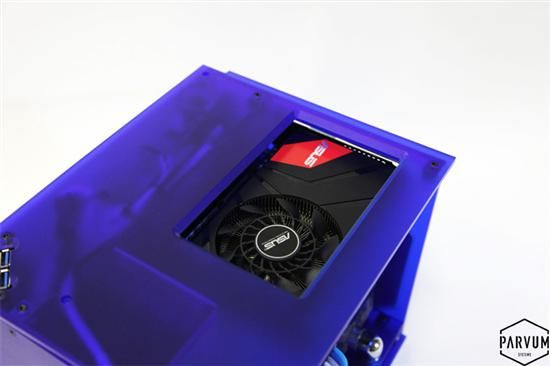

Open hole at the top of the card, the card is basically a half naked.

The acrylic decorative graphics
